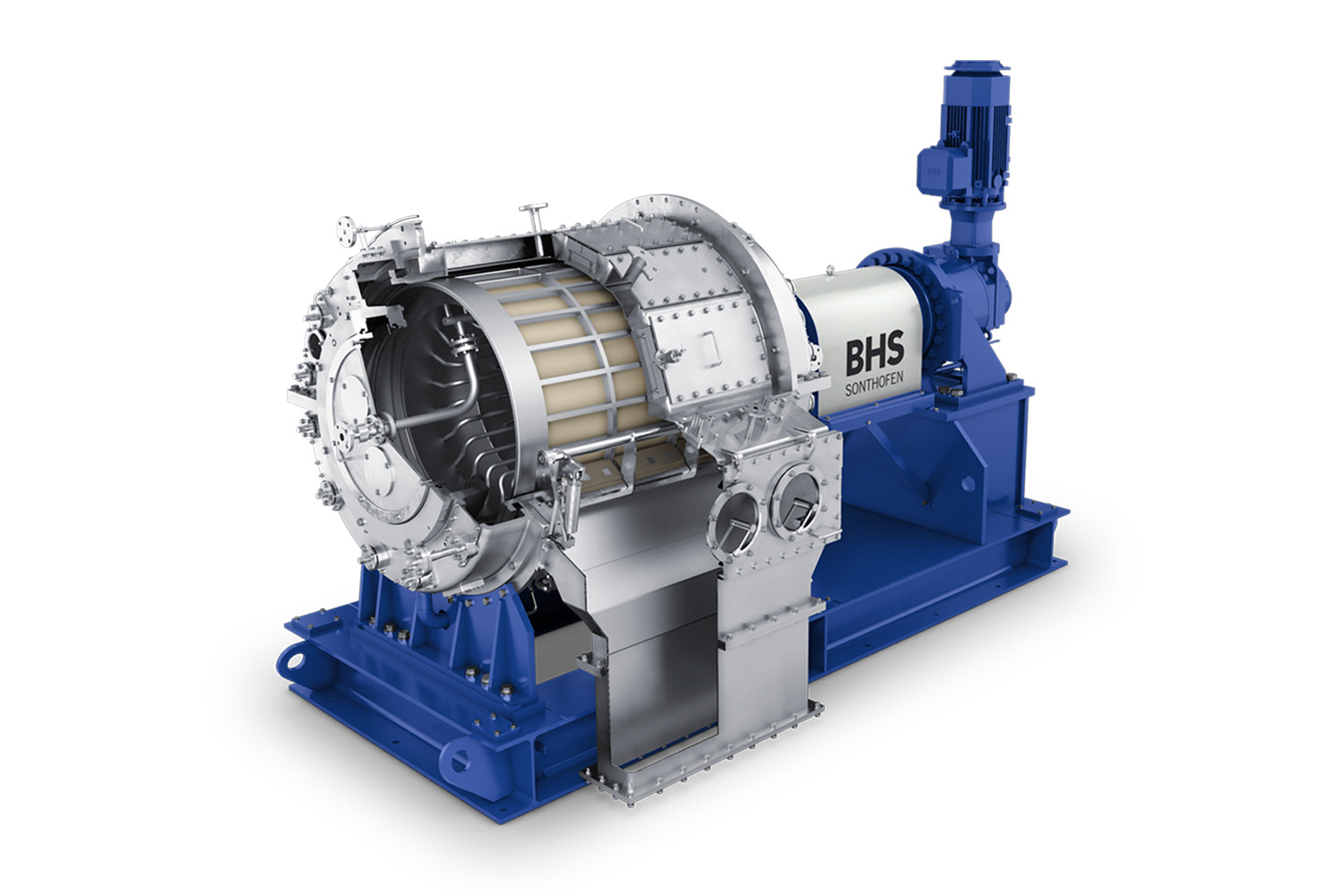

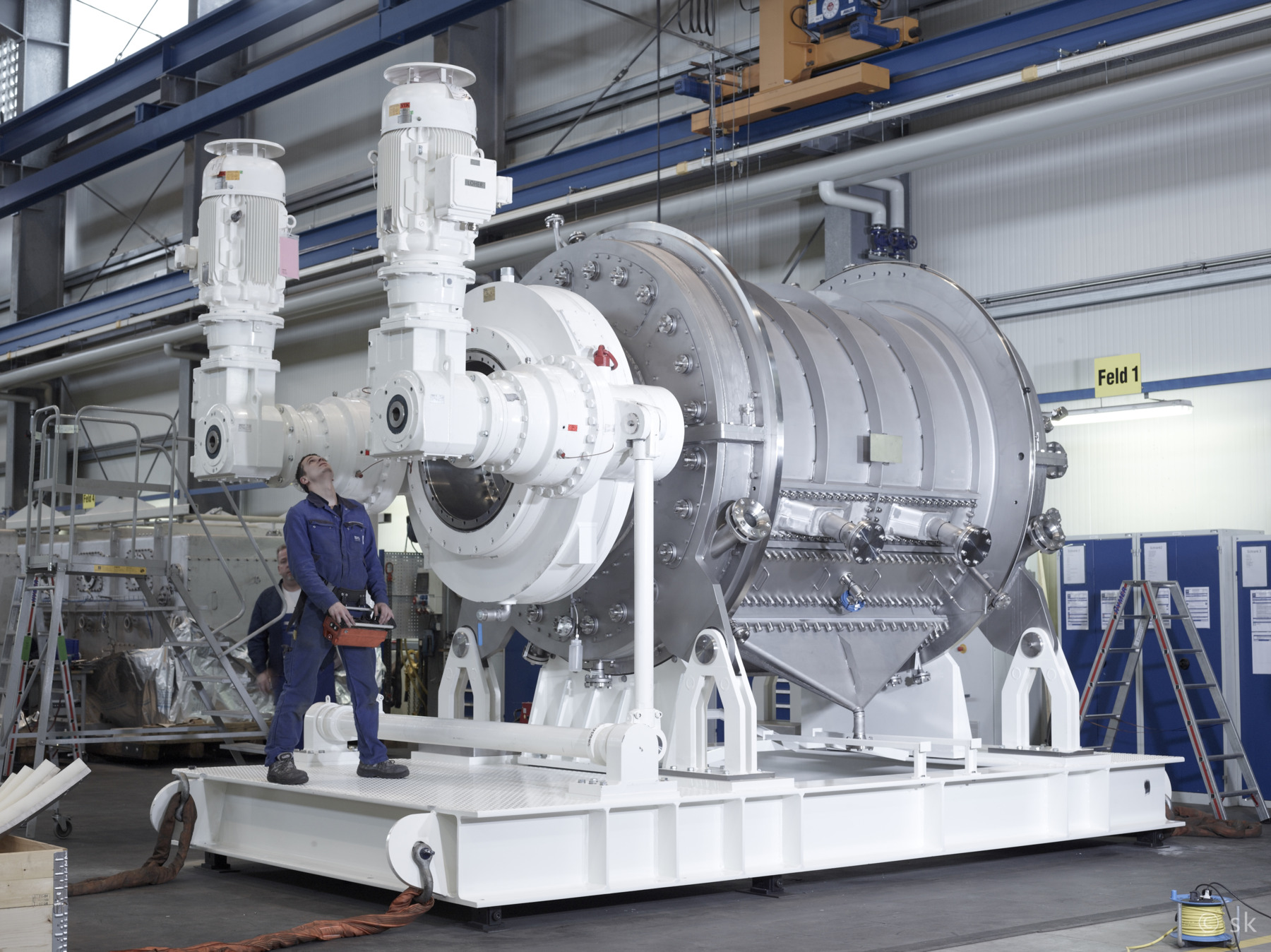

Rotary Pressure Filter (RPF)
Rotary Pressure Filter (RPF)

Description

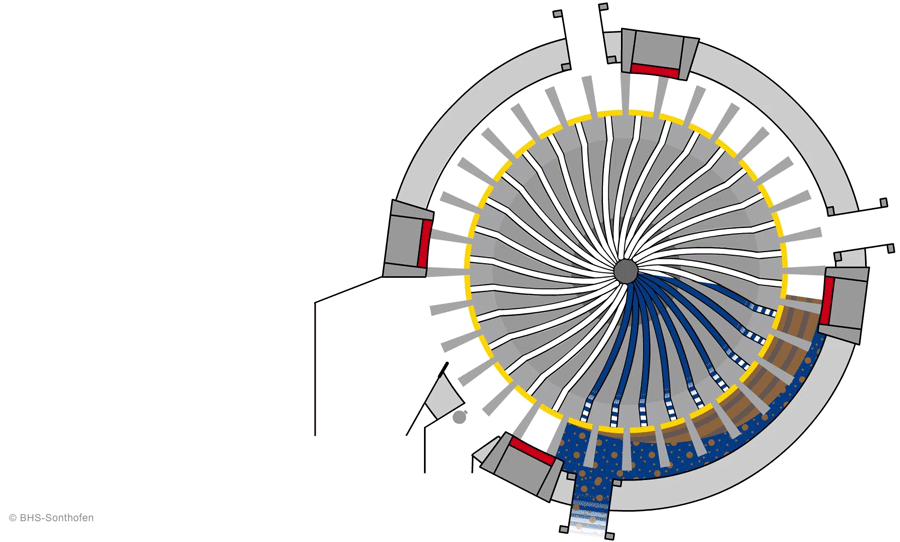

The BHS Rotary Pressure Filter (RPF) is a continuous filter for pressure filtration, cake washing and drying of high solids slurries with full containment and automatic cake discharge. The technology is based upon a slowly rotating drum, less than 2 rpm, with individual cells containing the filter media and isolated process zones.

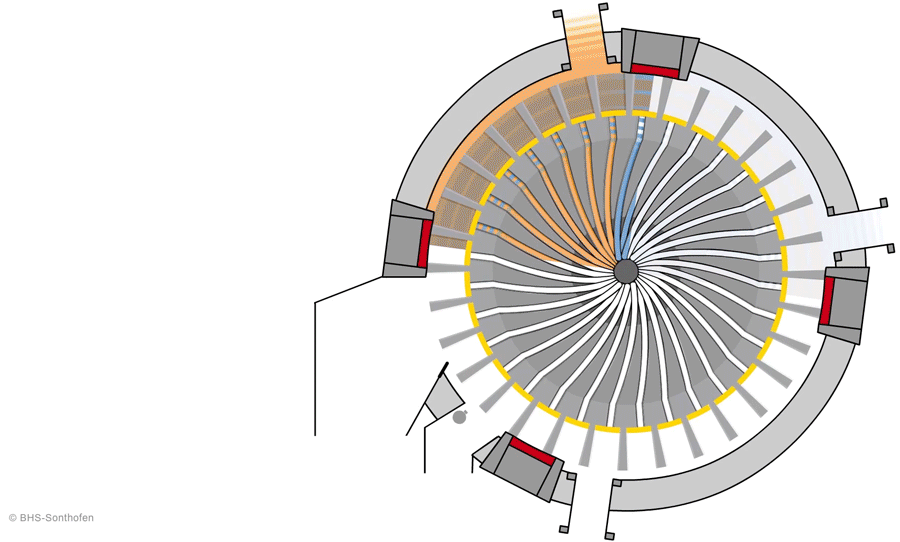

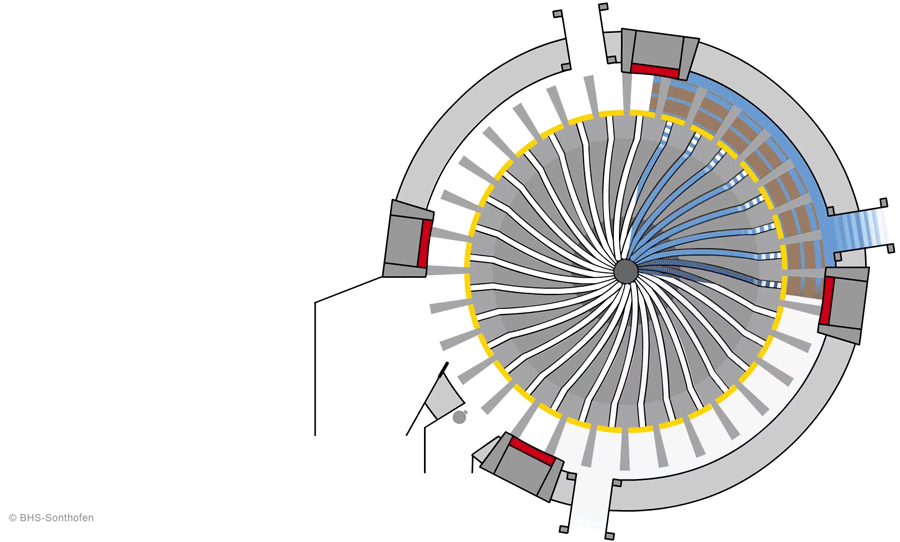

Filtration is driven by pump pressure of up to 7 barg with a temperature range of 200° Celsius. Positive displacement washing or counter-current washing follows filtration. Multiple washing steps as well as solvent exchanges, steaming, and extraction can also be accomplished. Finally, the cake is dried by blowing hot or ambient-temperature gas through the cake.

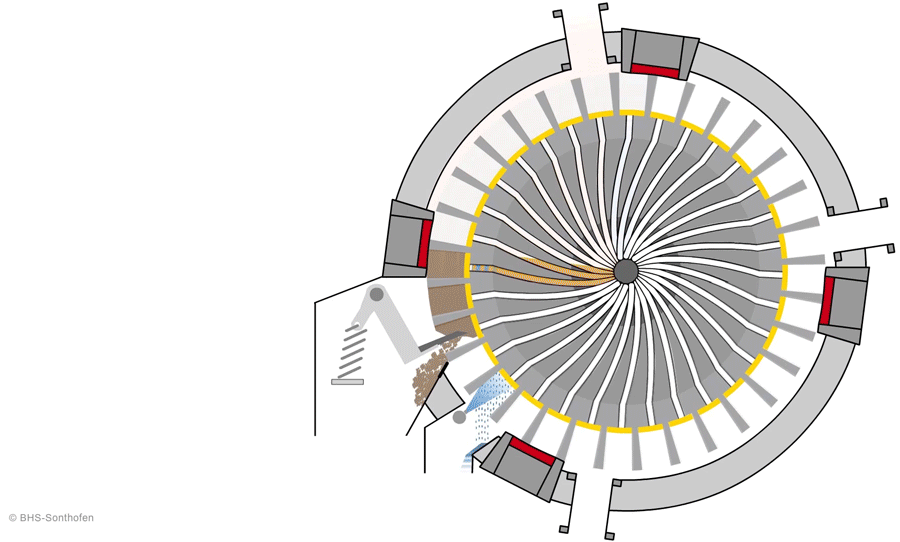

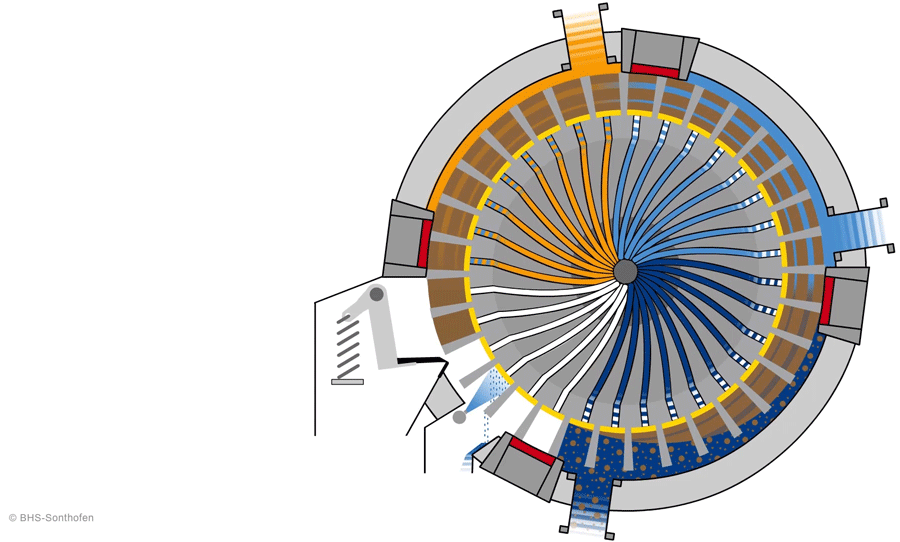

The Filter has a uniquely designed discharge system, which provides for atmospheric discharge from pressure filtration. After automatic cake discharge, the filter cloth is washed; the clean filter cloth then re-enters the feeding/filtration zone thereby continuing the process. All solvent and gas streams can be recovered separately and reused in the process to minimize their consumption.

Animation

Highlights

Continuous, High-Throughput Design

Through continuous, thin-cake filtration the RPF is able to process suspensions while maintaining efficient throughputs.

Completely Enclosed

The RPF operates as a closed, gas-tight system, which helps to contain and control the process. This allows the filter to be well-suited for filtration of hazardous materials such as solvents.

Low Wear – Low Maintenance

Slow rotation means minimal wear and tear on the mechanical elements of the filters. These filters are able to operate 24-7 with only small annual maintenance.

Production of high-quality pearlescent pigments with the rotary pressure filter (RPF)

BHS-Sonthofen rotary pressure filters have proven themselves in many applications. For example, Merck uses them around the clock to produce pearlescent pigments. Watch the video to find out how BHS filtration solutions give cars and cosmetics a shiny appearance.

Technical Specifications

TYPE DRUM DIAMETER EFFECTIVE DRUM LENGTH ACTIVE FILTER AREA DIMANSIONS (L x B x H) WEIGHT
RPF P01 0,75 m 0,1 m 0,18 m² 2 x 1,2 x 2m 2.500 kg
RPF P02 0,75 m 0,25 m 0,45 m² 2,1 x 1,2 x 2 m 3.500 kg
RPF A03 1 m 0,3 m 0,72 m² 3,9 x 2,1 x 2,2 m 7.000 kg
RPF A06 1 m 0,6 m 1,44 m² 4,2 x 2,1 x 2,2 m 10.000 kg
RPF A09 1 m 0,9 m 2,16 m² 4,5 x 2,1 x 2,2 m 13.000 kg
RPF A12 1 m 1,2 m 2,88 m² 4,8 x 2,1 x 2,2 m 15.000 kg
RPF B09 1,5 m 0,9 m 3,2 m² 5 x 2,9 x 3,2 m 20.000 kg
RPF B12 1,5 m 1,2 m 4,3 m² 5,4 x 3 x 3,2 m 30.000 kg
RPF B16 1,5 m 1,6 m 5,8 m² 5,8 x 3 x 3,2 m 35.000 kg
RPF X16 1,8 m 1,6 m 6,9 m² 5,8 x 3,3 x 3,6 m 40.000 kg
RPF X20 1,8 m 2 m 8,6 m² 6,2 x 3,3 x 3,6 m 42.000 kg



All specifications apply to a high-performance filter with Center Drive. The shown dimensions an geihts are approximate figures.

The technical data for other designs may vary from the information shown here.

All technical data may change due to development.
Subject to modification without notice.

Operating method continuous
Operating pressure up to 6 bar (g)
Operating temperature up to 160° C
Soldids content (suspension) up to 60 % (by weight)
Cake thickness up to 175 mm
Grain size 10 – 500 µm
Filter output – suspension up to 30 m³/m² h
Filter output – dry solids up to 15.000 kg/m² h
Active filter surface 0,18 – 8,6 m²

Pilot Test Filter

P01

  • Active Filter Area: 0.17 m²
  • Dimensions (LxWxH): 6ft x 4.5ft x 6.5 ft
  • Maximum Operating Pressure: 6 barg (87 psi)
  • Material of Construction: Stainless Steel
