Rental Filters

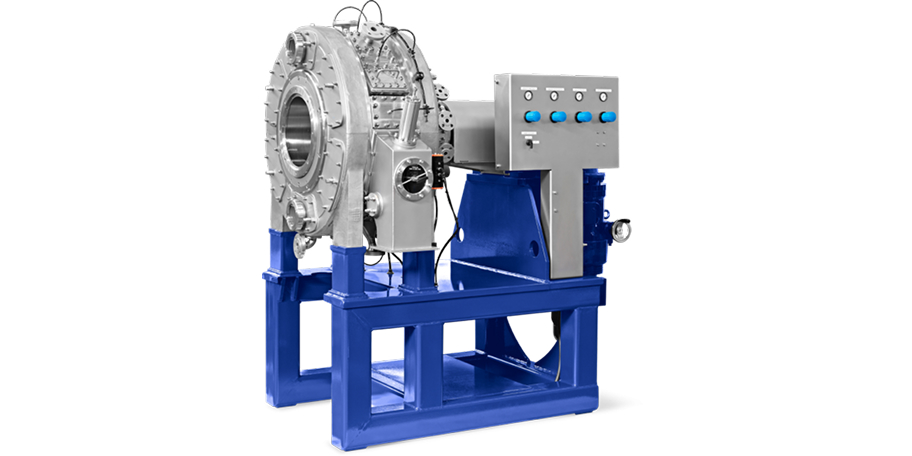

Rotary Pressure Filter – RPF P01

  • Active Filter Area: 0.17 m²

  • Dimensions (LxWxH): 6ft x 4.5ft x 6.5 ft

  • Maximum Operating Pressure: 6 barg (87psi)

  • Material of Construction: Stainless Steel

1. RPF P01
More Information

Continuous-Indexing Belt Filter – Open Belt Filter (BF025-024)

  • Active Filter Area: 0.6 m²

  • Dimensions (LxWxH): 12ft x 5ft x 6ft

  • Material of Construction: Polypropylene or Stainless Steel

BF025-024 Belt Filter
More Information

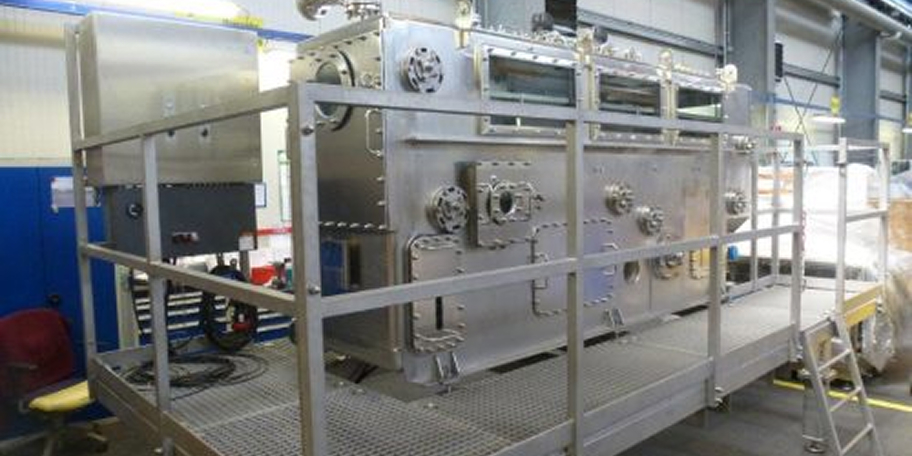

Gas Tight, Explosion Proof Belt Filter – BF025-020

  • Active Filter Area: 0.5m²

  • Dimensions (LxWxH): 15.5ft x 7.25ft x 8.2 ft

  • Material of Construction: Conductive Polypropylene or Stainless Steel

  • Gas tight enclosure suitable for nitrogen overlay

Stainless Steel Enclosed Belt Filter
More Information

Laboratory Belt Filter – BF010-010 Skid Polypropylene

  • Active Filter Area: 0.1m²

  • Dimensions (LxWxH): 76” x 30” x 68

  • Skid mounted with vacuum pump

  • Material of Construction: Polypropylene

LBF Photo
More Information

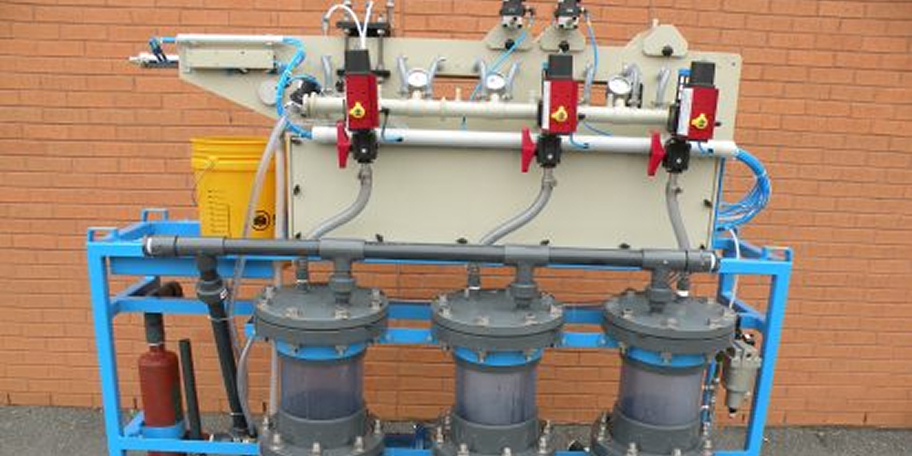

Vacuum and Filtrate Skids

  • Dimensions (LxWxH): 8ft x 5.25ft x 6.5ft

  • Three (3) filtrate receivers, three (3) filtrate pumps and vacuum pump; skid mounted

Vacuum Filtrate Recievers
More Information

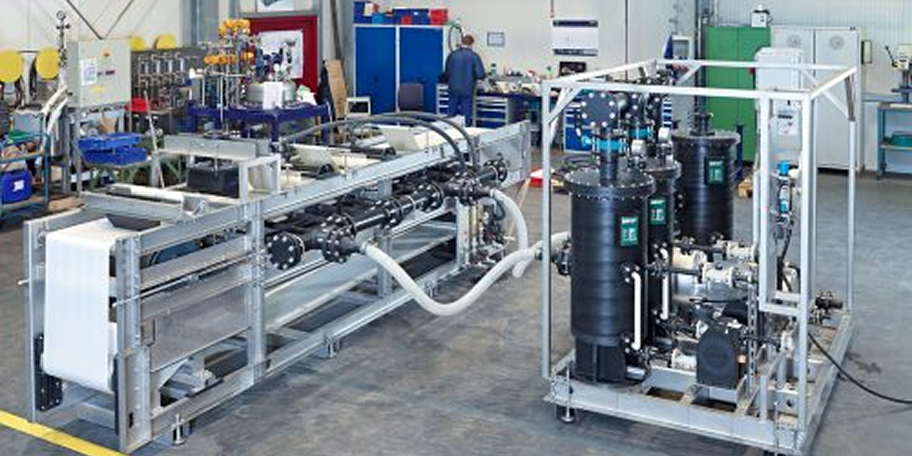

Rubber Belt Filter – BFR 042-030

  • Active Filter Area: 0.9m²

  • Dimensions (LxWxH): 17.5ft x 6ft x 5.5ft

  • Material of Construction: SBR Rubber and Polyethylene

  • Vacuum Filtrate Skid Dimensions: 7.5ft x 5ft x 7ft

Pilot BFR and Filtrate Skid
More Information

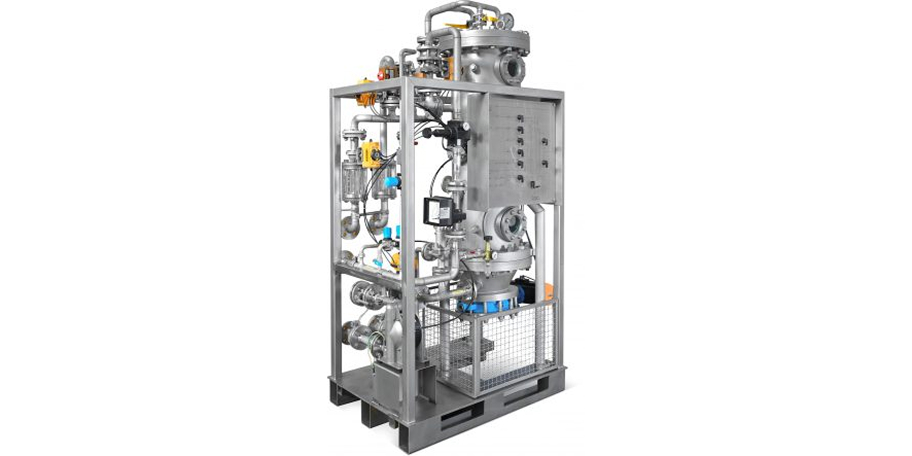

Candle Filter – CF 12-003

  • Active Filter Area: 1.0m²

  • Dimensions (LxWxH): 4.5ft x 3.5ft x 8.5ft

  • Maximum Operating Pressure: 10 barg (145psi)

  • Material of Construction: Stainless Steel

CF12-003
More Information

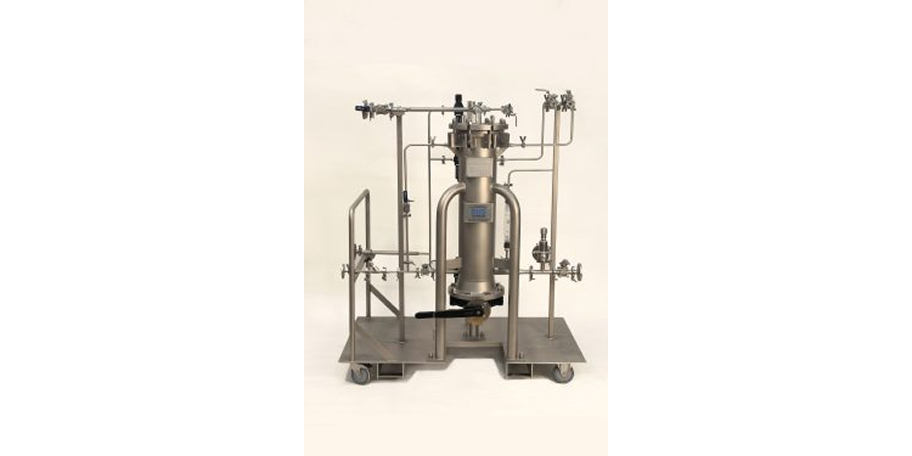

LKF Pharma

  • Active Filter Area: 0.17m²

  • Dimensions (LxWxH): 5ft x 3ft x 5ft

  • Maximum Operating Pressure: 6 barg (87psi)

  • Material of Construction: Stainless Steel

LKF Pharma
More Information

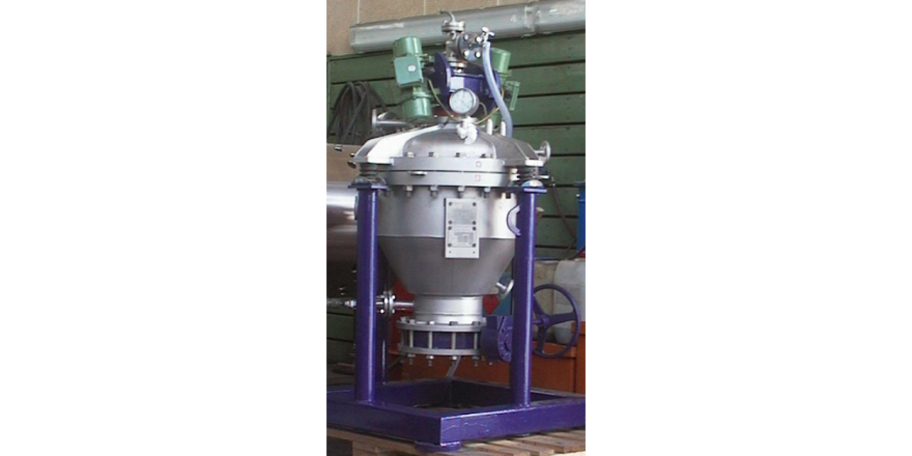

Pressure Plate Filter – PF0406

  • Active Filter Area: 0.69m²

  • Dimensions (LxWxH): 3ft x 3ft x 5.5ft

  • Maximum Operating Pressure: 6 barg (87psi)

  • Material of Construction: Stainless Steel

Pilot PF04
More Information

Auto Press – AP300

  • Active Filter Area: 0.22 – 1.0m² (adjustable depending on test requirements)

  • Dimensions (LxWxH): 7.5ft x 3.5ft x 8ft

  • Maximum Operating Pressure: 10barg (145psi)

  • Material of Construction: Stainless Steel or Polypropylene internals

AP300 Pilot Unit
More Information

Tank Skid

  • Dimensions (LxWxH): 12ft x 6ft x 5.5ft

  • Three (3) open top 125 gallon tanks with centrifugal pump

  • Two (2) pneumatic agitators

  • Intended for slurry tank, precoat tank, and clean filtrate tank

Tank Skid Image
