Process Continuous-Indexing Vacuum Belt Filter
Description
The BHS Continuous-Indexing Vacuum Belt Filter provides for vacuum filtration, cake washing, pressing, and drying of high solids slurries. The technology is based upon fixed vacuum trays, continuously feeding slurry systems, and indexing or stepwise movement of the filter media.
For the process operation, due to the stepwise operation of the belt, washing and drying efficiencies are maximized with the stopped belt and the mechanism of “plug-flow” for gasses and liquids. Cake pressing and squeezing further enhances drying. Finally, the fixed trays allow for the mother liquor and the wash filtrates to be recovered individually and recirculated/recovered/reused for a more efficient operation. Steaming as well as counter-current washing are able to be integrated into the design.

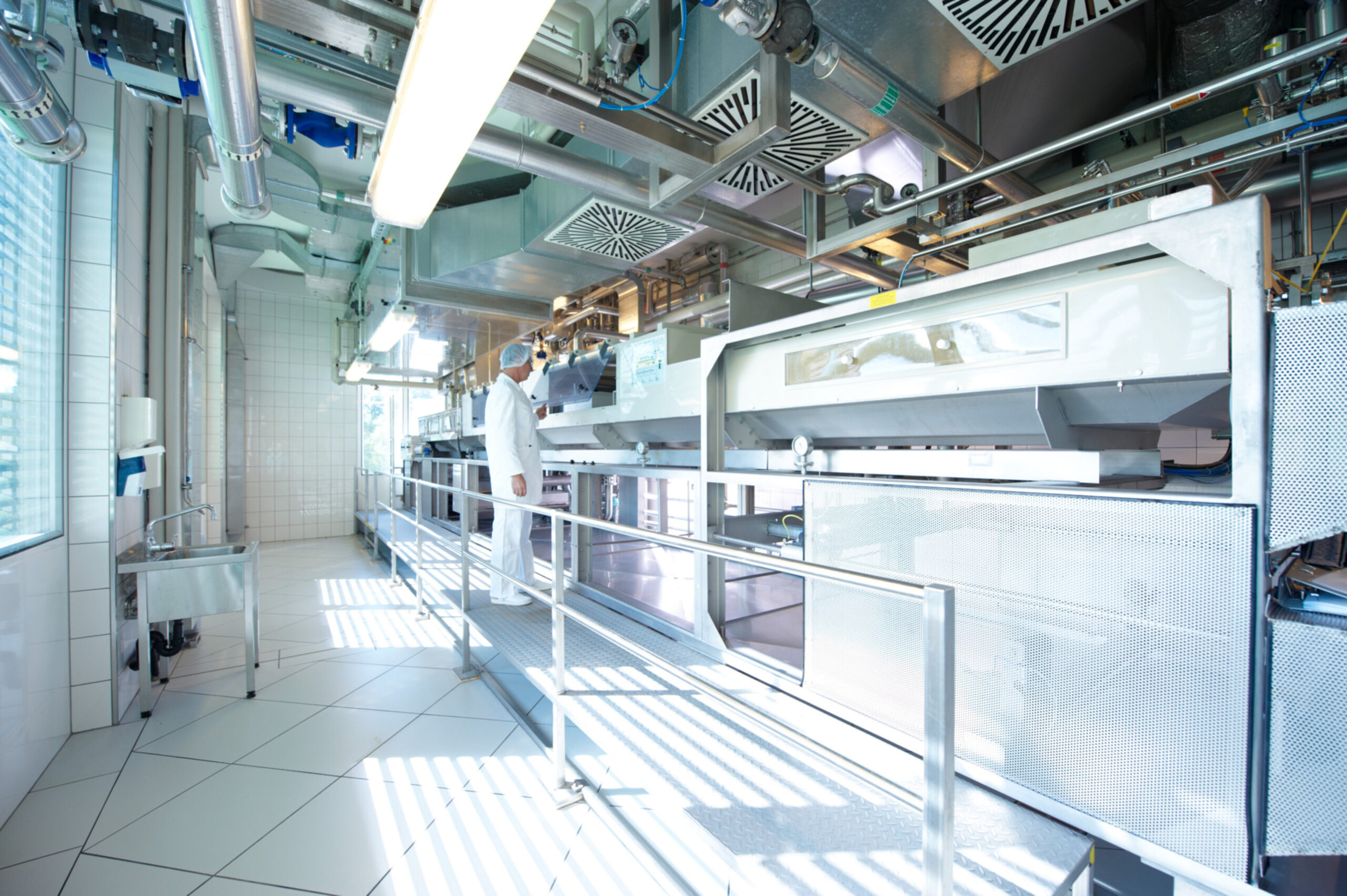

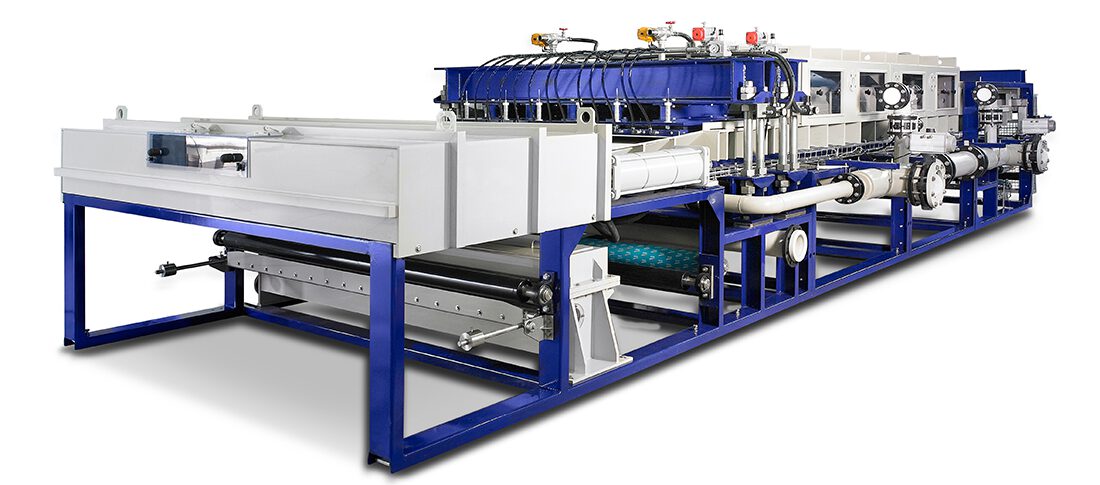

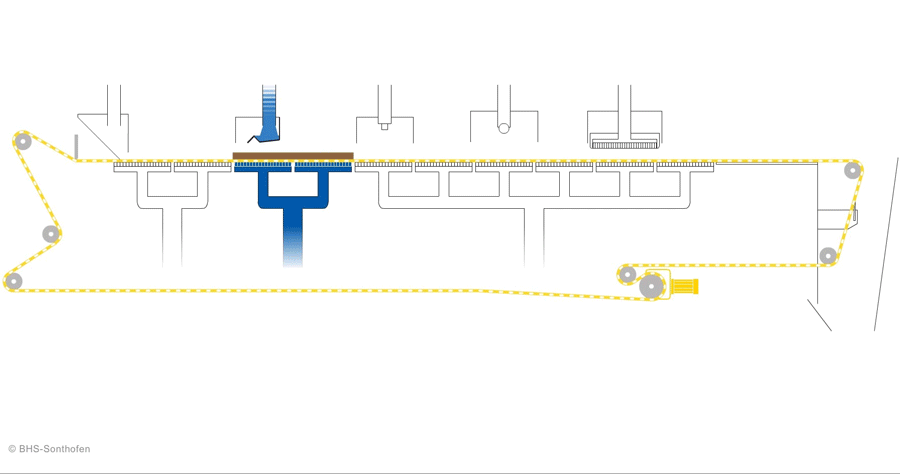

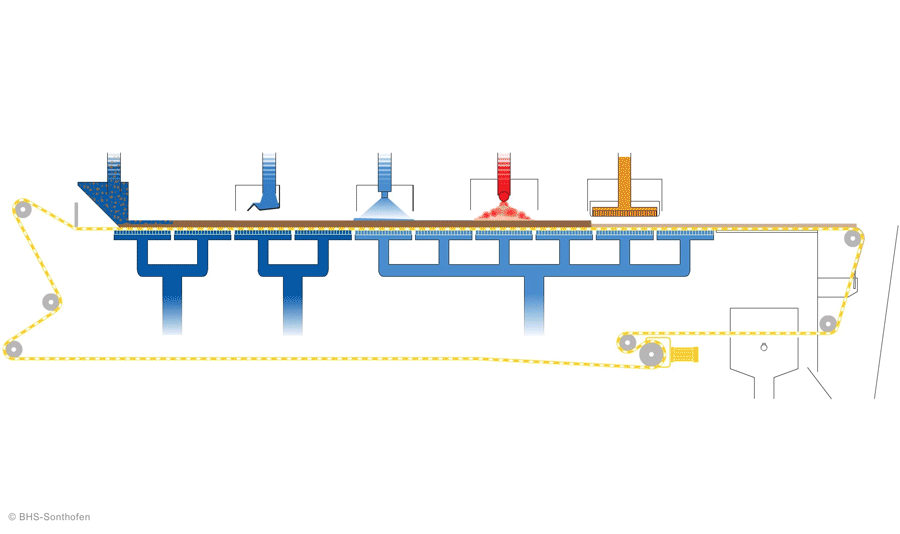

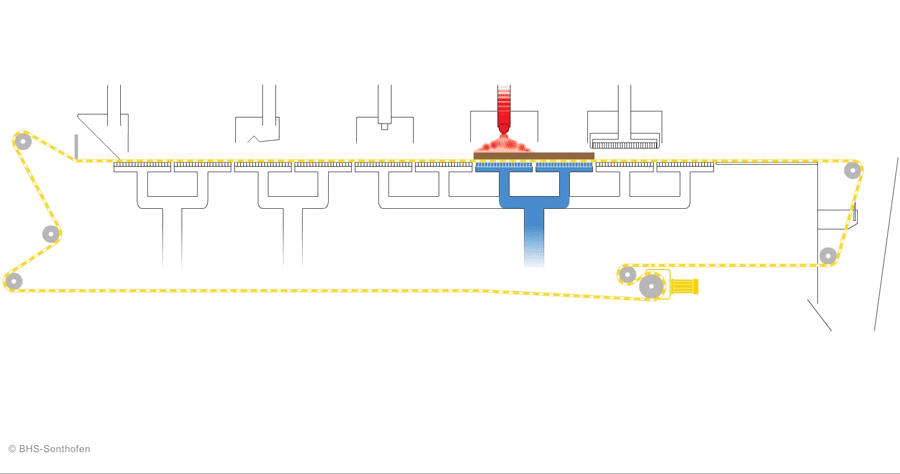

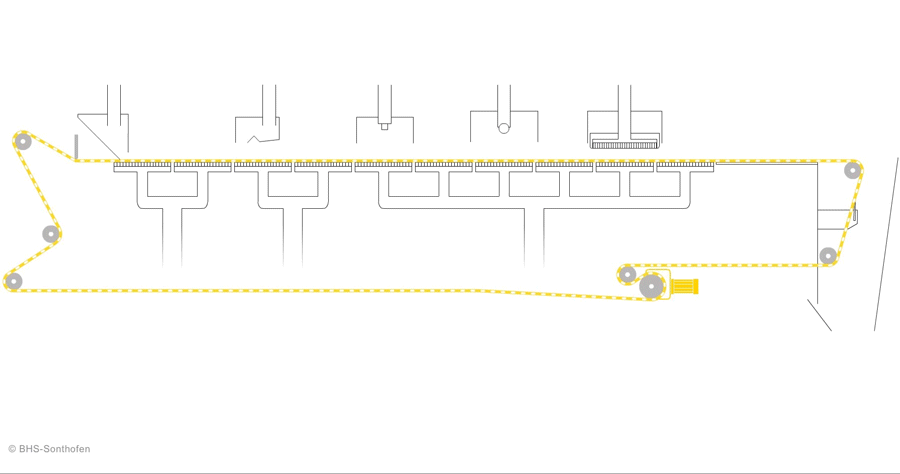

Animation
Technical Specifications
| Type | Active filter width | Active filter length | Active filter area | Dimensions | ||
|---|---|---|---|---|---|---|
| Length | Width | Height | ||||
| BF 010 | 0,1 m | 1 m | 0,1 m² | 1,7 m | 0,6 m | 0,7 m |
| BF 025 | 0,25 m | 2 – 5 m | 0,5 – 1,25 m² | 4 – 8,3 m | 1,3 m | 1,7 m |
| BF 050 | 0,50 m | 3 – 10 m | 1,5 – 5 m² | 5,4 – 12,4 m | 1,8 m | 1,9 m |
| BF 100 | 1 m | 3 – 12 m | 3 – 12 m² | 5,4 – 14,4 m | 2,3 m | 1,9 m |
| BF 150 | 1,5 m | 3 – 16,5 m | 4,5 – 24,8 m² | 5,4 – 18,9 m | 2,8 m | 1,9 m |
| BF 200 | 2 m | 4 – 18 m | 8 – 36 m² | 6,4 – 20,4 m | 3,3 m | 1,9 m |
| BF 250 | 2,5 m | 6 – 21 m | 15 – 52,5 m² 1 | 10 – 25 m | 4 m | 2,3 m |
| BF 300 | 3 m | 6 – 25,5 m | 18 – 76,5 m² | 10 – 29,5 m | 4,5 m | 2,3 m |
| BF 350 | 3,5 m | 9 – 30 m | 31,5 – 105 m² | 13 – 34 m | 5 m | 2,3 m |
All specifications apply to the standard version.
Technical data for customized designs may differ from the specified data.
All technical data may change due to development.
Subject to modification without notice.
| Operating method | continuous |
|---|---|
| Operating pressure | vacuum |
| Operating temperature | up to 90 °C |
| Solids content (suspension) | up to 50 % (by weight) |
| Cake thickness | up to 50 mm |
| Grain size | 1 – 100 µm |
| Filter output – suspension | up to 10 m³/m² h |
| Filter output – dry solids | up to 1.000 kg/m² h |
| Active filter surface | 0,1 – 105 m² |
Pilot Test Filter
Open Belt Filter (BF025-024)
- Active Filter Area: 0.6 m²
- Dimensions (LxWxH): 12ft x 5ft x 6ft
- Material of Construction: Polypropylene or Stainless Steel
Gas Tight Pilot Belt Filter (BF025-020)
- Active Filter Area: 0.5m²
- Dimensions (LxWxH): 15.5ft x 7.25ft x 8.2 ft
- Material of Construction: Conductive Polypropylene or Stainless Steel
- Gas-tight enclosure suitable for nitrogen overlay
Laboratory Belt Filter (BF010-010) Skid Polypropylene
- Active Filter Area: 0.1m²
- Dimensions (LxWxH): 76” x 30” x 68”
- Skid mounted with vacuum pump
- Material of Construction: Polypropylene
Vacuum and Filtrate Skids
- Dimensions (LxWxH): 8ft x 5.25ft x 6.5ft
- Three (3) filtrate receivers, three (3) filtrate pumps, and vacuum pump; skid mounted
